IEEE 1547: The Essential Guide to DER Interconnection, Testing, and Grid Support

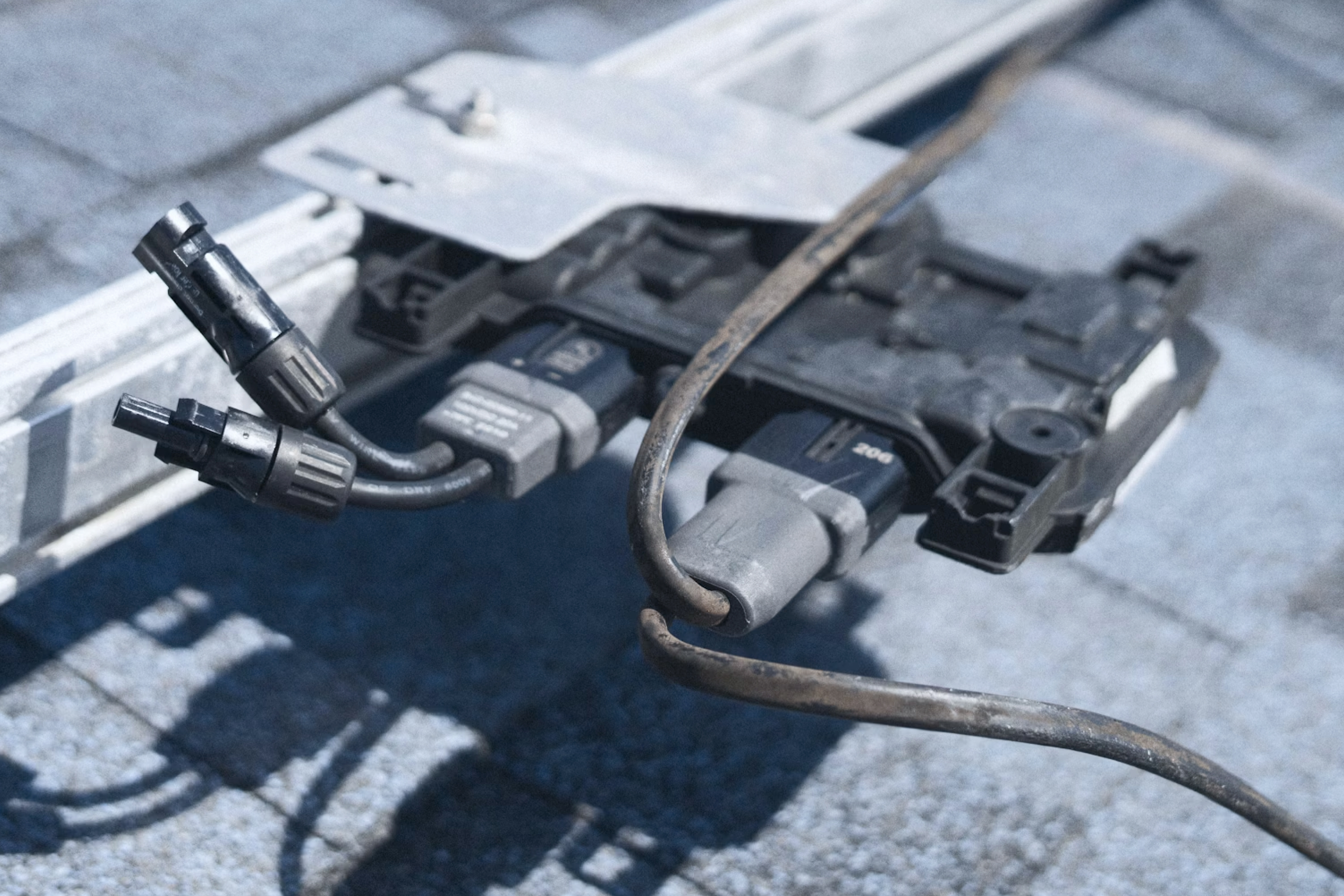

As distributed energy resources (DERs) such as solar inverters and battery systems continue to expand across the grid—from rooftops to utility-scale solar park deployments—the rules governing how they connect and behave have become critical. For background on PV performance metrics and what panels deliver outside the lab, see solar panels facts.

Without consistent interconnection standards, large numbers of devices responding unpredictably to voltage or frequency events could create instability instead of resilience.

The Institute of Electrical and Electronics Engineers (IEEE) 1547 provides that foundation.

It establishes the performance and interoperability requirements that DER must follow at the point of common coupling (PCC), ensuring that clean energy systems support — rather than disrupt — the electric power system. Utilities, manufacturers, and regulators rely on it to define what “grid-supportive” behavior looks like.

This guide explains what IEEE 1547 covers, how the 2018 revision reshaped grid-support expectations, how compliance is verified through IEEE 1547.1 testing, and how the standard fits alongside related specifications such as Underwriters Laboratories (UL) 1741.

Key Points

• IEEE 1547 defines how DERs must perform and communicate at the PCC, specifying grid-support behaviors (voltage/frequency ride-through, Volt-VAR/Volt-Watt, power-quality limits) while leaving product safety to other standards.
• The 2018 revision and 2020 amendment strengthen requirements: DERs must provide reactive power capability, remain online through wider voltage/frequency disturbances, and expose a local communications interface, with three robustness levels (Categories I–III).
• Conformance is proven through IEEE 1547.1 Type, Production, and Commissioning tests that document settings, ride-through curves, power-quality data, and communications logs for utility review.
• UL 1741 complements—not replaces—IEEE 1547 by certifying device safety and selected grid-support functions; harmonization with IEEE 519 and common protocols (e.g., IEEE 2030.5) continues to tighten.
• Many interconnection rules and utility handbooks—including in California (CA), Hawaii (HI), and parts of Massachusetts (MA)—reference IEEE 1547-2018, so manufacturers should ship firmware mapped to utility profiles, maintain version-controlled test reports, and include a settings sheet to support interconnection review.

What Is IEEE 1547?

The IEEE 1547 standard sets performance and interoperability rules for interconnecting DERs with an electric power system (EPS).

It defines how equipment behaves at the PCC under normal and abnormal grid conditions, using clear terms, functions, and testable settings. Its scope is interconnection performance, not product safety.

The standard evolved with grid needs.

The 2003 baseline was simple and focused on must-trip behavior. The 2018 revision added voltage support, voltage and frequency ride-through, and a local communications interface to handle high DER penetration.

The 1547a-2020 amendment refined settings, including flexible Category III use in tougher grid conditions.

By standardizing definitions and metrics at the PCC, IEEE 1547 reduces system disturbance risks. It limits harmonics, flicker, direct current (DC) injection, and overvoltage contributions that can damage equipment or cause nuisance trips.

It also defines how DER synchronizes, reconnects, and supports voltage and frequency during disturbances.

Related documents complement 1547 rather than replace it.

UL 1741 focuses on product safety and can certify certain grid-support functions, while IEEE 519 provides harmonic limits used to evaluate power quality. For module qualification and stress testing, see IEC 61215. Together, they help keep safety and interconnection performance clearly separated while making grid impacts measurable.

IEEE 1547 Requirements

IEEE 1547 turns broad interconnection goals into specific, testable functions. Hardware teams set modes, limits, and response times so DER supports the grid without causing flicker, harmonics, or mis-synchronization.

Key functions and metrics at the PCC include:

• Voltage regulation modes

  • Constant power factor
  • Volt-VAR for reactive power
  • Volt-Watt for active power curtailment
• Synchronization and power quality

  • Limits on rapid voltage change, flicker, temporary and transient overvoltage, and harmonics per IEEE 519
  • DC injection limited to 0.5% of rated output to protect transformers
• Abnormal conditions

  • Voltage and frequency ride-through with defined trip and momentary cessation regions
  • Anti-islanding detection and disconnection (often referenced in solar panel fire safety training and response planning)
• Interoperability

  • A local communications interface to read status, write settings, and switch modes within defined response times

Performance Categories guide the required capabilities by grid context.

These functions can be visualized as grouped controls at the PCC: voltage regulation modes (Volt-VAR and Volt-Watt), synchronization checks, ride-through regions, and interoperability settings.

IEEE 1547.1 Testing

IEEE 1547.1 defines how to verify 1547 functions. Tests occur at three tiers that mirror product life: Type, Production, and Commissioning. Together they check voltage and frequency response, ride-through, reconnection timing, reactive power modes, and communications behavior.

• Type tests validate design defaults and capabilities in a lab. They measure harmonics, confirm Volt-VAR and Volt-Watt performance, verify trip and reconnection times, and exercise the communications interface.
• Production tests screen each unit at the factory for correct assembly and basic operability. Typical checks include isolation and control integrity.
• Commissioning tests prove the installed system works at the installation site. Teams confirm settings match utility profiles, demonstrate interoperability, and document communications reads and writes.

Sample test matrix:

• Frequency/voltage ride-through → Type, Commissioning
• Reconnect timer and soft-start ramp → Type, Commissioning
• Volt-VAR/Volt-Watt accuracy → Type, Commissioning
• Harmonics and DC injection → Type
• Local communications (read/write, timing) → Type, Commissioning

Checklist:

• Test plan with settings and tolerances
• Traceable test metadata and equipment identifiers (IDs)
• Type and production reports tied to firmware versions
• Commissioning report with PCC measurements and communications logs
• Cross-reference to any UL 1741 certifications

Clear documentation helps demonstrate repeatable performance, particularly for ride-through and grid-support functions that utilities review closely.

Ride-Through & Grid Support

Voltage and frequency ride-through (V/FRT) keeps DER online through short disturbances.

• Category I generally permits a less robust response
• Category II is an intermediate level, typically requiring full ride-through with reactive power capability
• Category III supports wider operating ranges and faster frequency response for high-penetration feeders

For example, some profiles reference 3.0 Hz/s and wider trip/ride-through regions.

Volt-VAR absorbs or supplies reactive power to help manage voltage, while Volt-Watt reduces active power to limit overvoltage risk.

Smooth transitions matter.

IEEE 1547 defines response timing and ramp behavior to avoid step changes that can destabilize feeders.

Interoperability ties these functions together. A local communications interface can read status, apply utility mode profiles, and trigger transitions without custom code.

In practice, teams tune ride-through and Volt-VAR/Volt-Watt settings to align with utility requirements and coordinate reconnection behavior with feeder operations.

State Adoption & Policy

After the Energy Policy Act of 2005, states and utilities steadily embedded IEEE 1547 into interconnection rules—part of broader solar panel regulations—through tariffs, handbooks, and utility profiles (separate from NEC 2023 code adoption and authority having jurisdiction (AHJ) enforcement).

High-penetration regions, including CA and HI, commonly require advanced grid support aligned with Category III.

In CA, requirements are coordinated through California Public Utilities Commission (CPUC)-aligned frameworks and utility rulebooks, while Hawaiian Electric has used advanced inverter functions to manage island grid conditions.

Some configurations, such as spot networks, may follow additional requirements or exceptions.

Filing checklist for hardware makers:

• Settings sheet mapped to the target utility profile
• IEEE 1547.1 type and commissioning test reports
• Any related UL 1741 certificates and firmware IDs
• Communications profile, control registers, and timing evidence
• One-line diagram showing PCC, protection, and metering
• Documented reconnection timing and mode ramp plans

Future Changes & Harmonization

IEEE 1547 will continue to mature through amendments and corrigenda.

The 1547a-2020 update widened allowable settings in some regions, giving utilities more options for Category III behavior without bespoke requirements.

Harmonization will tighten across related specifications. UL 1741 aligns certification with 1547.1 test methods. IEEE 519 remains the harmonic reference. Common utility protocols, such as IEEE 2030.5 profiles, will shape how the local communications interface authenticates, times responses, and reports status.

Design implications are concrete. Firmware upgradability supports new profiles without hardware changes. Cybersecurity at the local interface protects settings and logs.

Documentation and version control connect type-test results to shipped firmware and commissioning records so utilities can verify conformance quickly.

A simple change-management plan helps teams adapt as requirements shift: track versions, map settings to utility profiles, validate timing on real feeders, and keep documentation organized with clear links to product stock keeping units (SKUs), firmware, and site IDs.

Coordination with IEEE and Electric Power Research Institute (EPRI) resources helps reduce rework.
